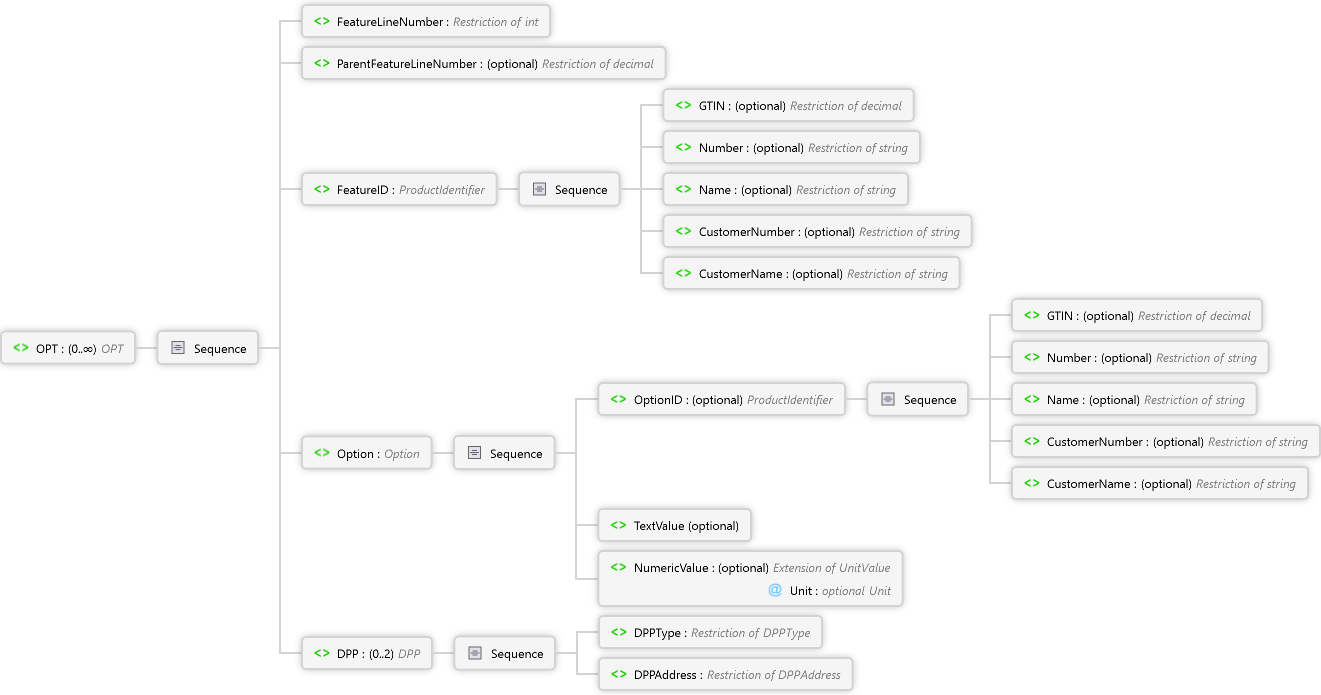

OPT Element

Sequence

FeatureLineNumber Restriction of xs:int

Sequential number of the feature within a line

ParentFeatureLineNumber optional Restriction of xs:decimal

reference to a superior feature

identification elements for a feature

Sequence

GTIN optional Restriction of xs:decimal

= EAN Code

Number optional Restriction of xs:string

Internal number defined by the manufacturer

Name optional Restriction of xs:string

Name

CustomerNumber optional Restriction of xs:string

Number at customers site

CustomerName optional Restriction of xs:string

Name at customers site

Description of the option according to the feature

Sequence

Sequence

GTIN optional Restriction of xs:decimal

= EAN Code

Number optional Restriction of xs:string

Internal number defined by the manufacturer

Name optional Restriction of xs:string

Name

CustomerNumber optional Restriction of xs:string

Number at customers site

CustomerName optional Restriction of xs:string

Name at customers site

TextValue optional

Link to the digital product pass or digital zwin

Sequence

<xs:element name="OPT" type="OPT" minOccurs="0" maxOccurs="unbounded" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
