XML Einrichten Version 1.3
FOOT Element
XML Einrichten Version 1.3 > InvoiceMessage Element > INVOICE Element : FOOT Element
Namespace (none)
Type
Extension of DocumentFoot Complex Type

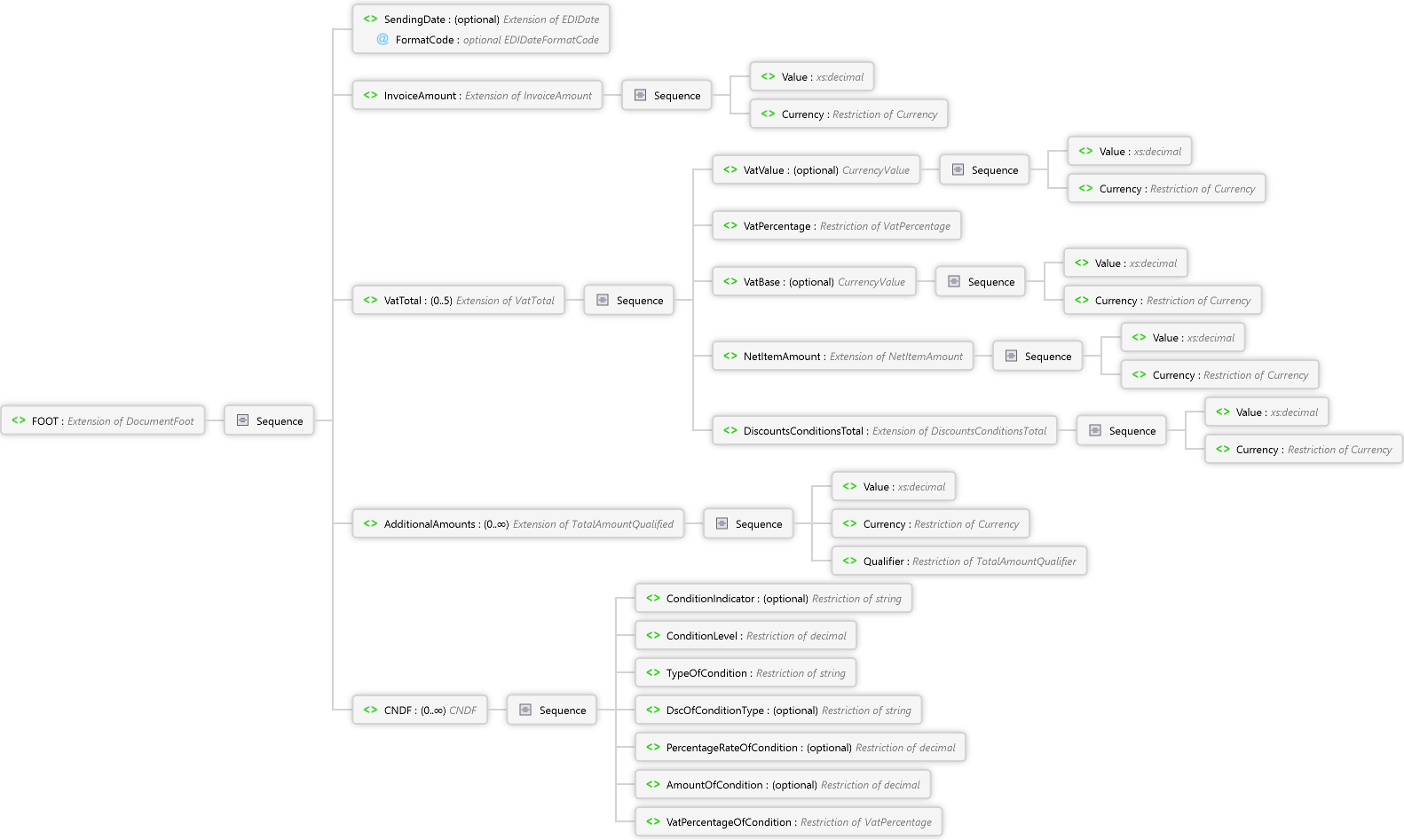

Diagram
VatPercentageOfCondition Element AmountOfCondition Element PercentageRateOfCondition Element DscOfConditionType Element TypeOfCondition Element ConditionLevel Element ConditionIndicator Element Sequence CNDF Element Qualifier Element Currency Element Value Element Sequence AdditionalAmounts Element Currency Element Value Element Sequence DiscountsConditionsTotal Element Currency Element Value Element Sequence NetItemAmount Element Currency Element Value Element Sequence VatBase Element VatPercentage Element Currency Element Value Element Sequence VatValue Element Sequence VatTotal Element Currency Element Value Element Sequence InvoiceAmount Element SendingDate Element Sequence FOOT Element
Overview
FOOT Extension of DocumentFoot Complex Type
Sequence
SendingDate optional EDIDate Complex Type
Sending date of this message
FormatCode optional EDIDateFormatCode Simple Type
InvoiceAmount InvoiceAmount Complex Type
Sequence
VatTotal 0..5 VatTotal Complex Type
Sequence
VatValue optional CurrencyValue Complex Type
Tax Amount
Sequence
VatPercentage VatPercentage Simple Type
Tax rate
VatBase optional CurrencyValue Complex Type
Vat base amount for a dedicated tax rate
Calculation: Sum of all Net Line Amounts - DiscountsConditionsTotal
Sequence
NetItemAmount NetItemAmount Complex Type
Sequence
DiscountsConditionsTotal DiscountsConditionsTotal Complex Type
Sequence
AdditionalAmounts 0..∞ TotalAmountQualified Complex Type
CNDF 0..∞ CNDF Complex Type
Sequence
ConditionIndicator optional Restriction of xs:string
Condition Indicator
A = Allowence
C = Charge
ConditionLevel Restriction of xs:decimal
TypeOfCondition Restriction of xs:string
Type of conditiont
DI = Rebate
FC = Freight Cost
IN = Insurance
PC = Handling costs
DscOfConditionType optional Restriction of xs:string
Description of the condition
PercentageRateOfCondition optional Restriction of xs:decimal
Percentage value of the condition
AmountOfCondition optional Restriction of xs:decimal
Amount value of the condition
VatPercentageOfCondition VatPercentage Simple Type
Vat of the condition
Source
<xs:element name="FOOT" minOccurs="1" maxOccurs="1" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="DocumentFoot">
        <xs:annotation>
          <xs:documentation xml:lang="de">Abschluss der Rechnung (INVOIC)</xs:documentation>
          <xs:documentation xml:lang="en">Footer of the invoice (INVOIC) </xs:documentation>
        </xs:annotation>
        <xs:sequence>
          <xs:element name="InvoiceAmount" type="InvoiceAmount" minOccurs="1" maxOccurs="1" />
          <xs:element name="VatTotal" type="VatTotal" minOccurs="0" maxOccurs="5" />
          <xs:element name="AdditionalAmounts" type="TotalAmountQualified" minOccurs="0" maxOccurs="unbounded" />
          <xs:element name="CNDF" type="CNDF" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
See Also
INVOICE Element | InvoiceMessage Element | XML Einrichten Version 1.3
