XML Einrichten Version 1.3
FOOT Element
XML Einrichten Version 1.3 > OrdrspMessage Element > ORDRSP Element : FOOT Element
Description
Footer of the order response (ORDRSP)
Namespace (none)
Type
Extension of DocumentFoot Complex Type

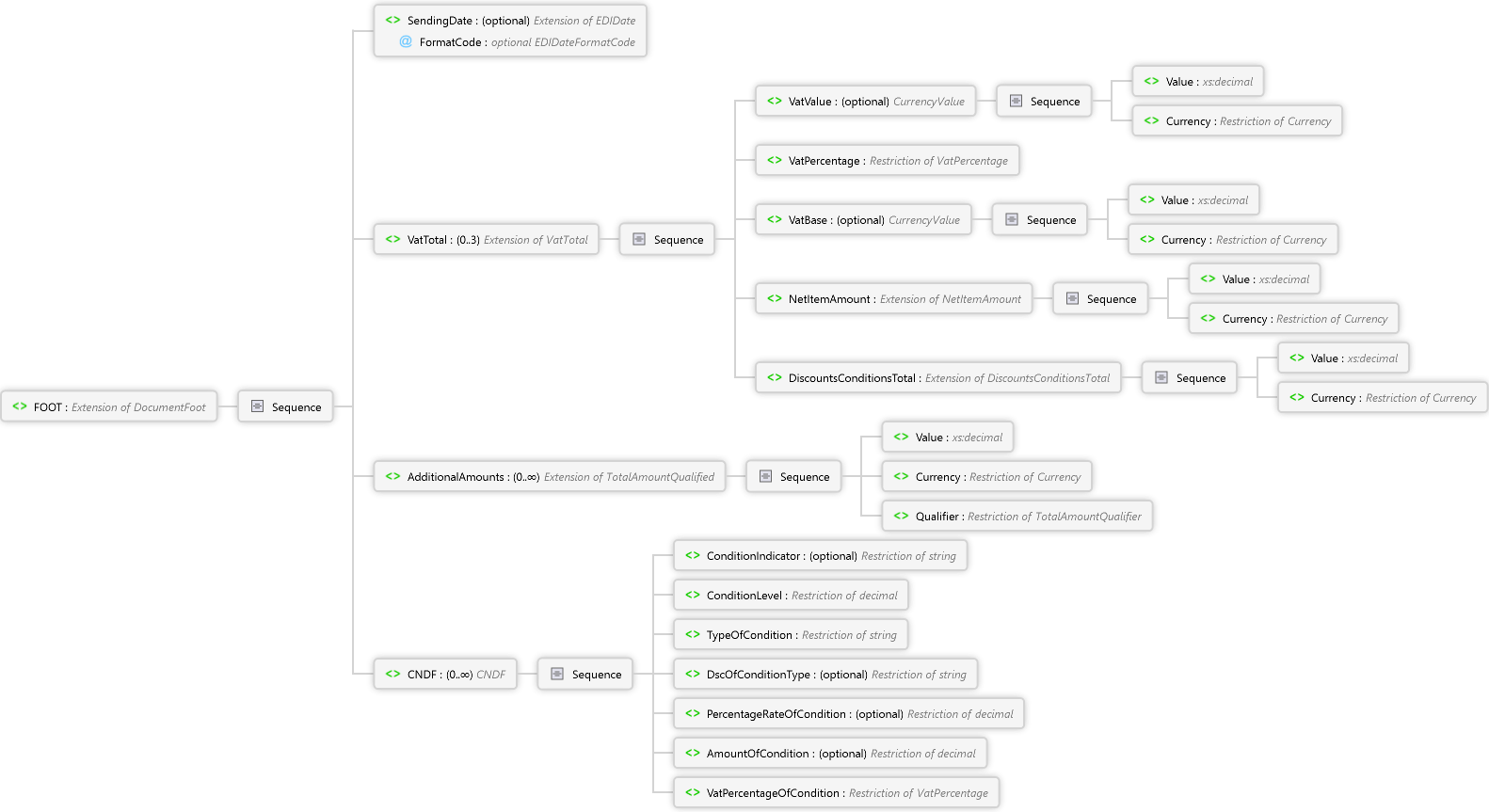

Diagram
VatPercentageOfCondition Element AmountOfCondition Element PercentageRateOfCondition Element DscOfConditionType Element TypeOfCondition Element ConditionLevel Element ConditionIndicator Element Sequence CNDF Element Qualifier Element Currency Element Value Element Sequence AdditionalAmounts Element Currency Element Value Element Sequence DiscountsConditionsTotal Element Currency Element Value Element Sequence NetItemAmount Element Currency Element Value Element Sequence VatBase Element VatPercentage Element Currency Element Value Element Sequence VatValue Element Sequence VatTotal Element SendingDate Element Sequence FOOT Element
Overview
FOOT Extension of DocumentFoot Complex Type
Footer of the order response (ORDRSP)
Sequence
SendingDate optional EDIDate Complex Type
Sending date of this message
FormatCode optional EDIDateFormatCode Simple Type
VatTotal 0..3 VatTotal Complex Type
Sequence
VatValue optional CurrencyValue Complex Type
Tax Amount
Sequence
VatPercentage VatPercentage Simple Type
Tax rate
VatBase optional CurrencyValue Complex Type
Vat base amount for a dedicated tax rate
Calculation: Sum of all Net Line Amounts - DiscountsConditionsTotal
Sequence
NetItemAmount NetItemAmount Complex Type
Sequence
DiscountsConditionsTotal DiscountsConditionsTotal Complex Type
Sequence
AdditionalAmounts 0..∞ TotalAmountQualified Complex Type
CNDF 0..∞ CNDF Complex Type
Sequence
ConditionIndicator optional Restriction of xs:string
Condition Indicator
A = Allowence
C = Charge
ConditionLevel Restriction of xs:decimal
TypeOfCondition Restriction of xs:string
Type of conditiont
DI = Rebate
FC = Freight Cost
IN = Insurance
PC = Handling costs
DscOfConditionType optional Restriction of xs:string
Description of the condition
PercentageRateOfCondition optional Restriction of xs:decimal
Percentage value of the condition
AmountOfCondition optional Restriction of xs:decimal
Amount value of the condition
VatPercentageOfCondition VatPercentage Simple Type
Vat of the condition
Source
<xs:element name="FOOT" minOccurs="1" maxOccurs="1" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation xml:lang="de">Abschluss der Bestellbestätigung (ORDRSP)</xs:documentation>
    <xs:documentation xml:lang="en">Footer of the order response (ORDRSP)  </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:complexContent>
      <xs:extension base="DocumentFoot">
        <xs:sequence>
          <xs:element name="VatTotal" type="VatTotal" minOccurs="0" maxOccurs="3" />
          <xs:element name="AdditionalAmounts" type="TotalAmountQualified" minOccurs="0" maxOccurs="unbounded" />
          <xs:element name="CNDF" type="CNDF" minOccurs="0" maxOccurs="unbounded" />
        </xs:sequence>
      </xs:extension>
    </xs:complexContent>
  </xs:complexType>
</xs:element>
See Also
ORDRSP Element | OrdrspMessage Element | XML Einrichten Version 1.3
