DocumentLineReference Element

Description

Reference to the document position resopnsible for the status

Namespace

(none)

Type

DocumentLineReferenceQualified Complex Type

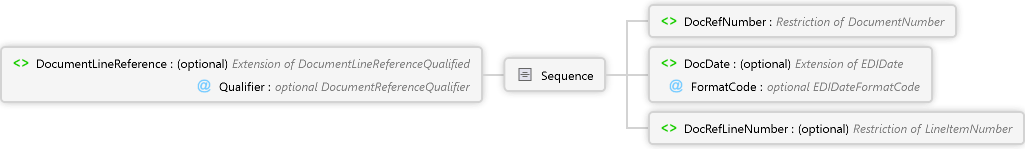

Diagram

Overview

DocumentLineReference optional DocumentLineReferenceQualified Complex Type

Reference to the document position resopnsible for the status

Qualifier optional DocumentReferenceQualifier Simple Type

Sequence

DocRefNumber DocumentNumber Simple Type

DocDate optional EDIDate Complex Type

FormatCode optional EDIDateFormatCode Simple Type

DocRefLineNumber optional LineItemNumber Simple Type

Source

<xs:element name="DocumentLineReference" type="DocumentLineReferenceQualified" minOccurs="0" maxOccurs="1" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation xml:lang="de">Referenz zu der Dokumentenposition, die zu dem Status führt</xs:documentation>
    <xs:documentation xml:lang="en">Reference to the document position resopnsible for the status </xs:documentation>
  </xs:annotation>
</xs:element>
