SeriesID Element

Description

Identification of the series related to the referred article

Namespace

(none)

Type

ProductIdentifier Complex Type

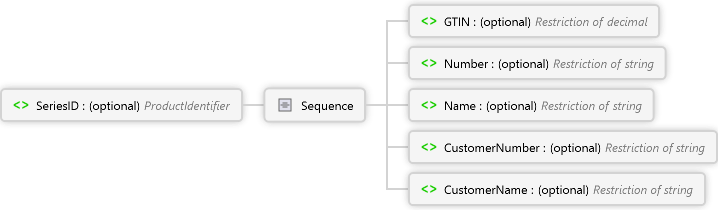

Diagram

Overview

SeriesID optional ProductIdentifier Complex Type

Identification of the series related to the referred article

Sequence

GTIN optional Restriction of xs:decimal

= EAN Code

Number optional Restriction of xs:string

Internal number defined by the manufacturer

Name optional Restriction of xs:string

Name

CustomerNumber optional Restriction of xs:string

Number at customers site

CustomerName optional Restriction of xs:string

Name at customers site

Source

<xs:element name="SeriesID" type="ProductIdentifier" minOccurs="0" maxOccurs="1 " xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation xml:lang="de">Identifikation der Serie des Artikels in der benannten Position</xs:documentation>
    <xs:documentation xml:lang="en">Identification of the series related to the referred article </xs:documentation>
  </xs:annotation>
</xs:element>
