XML Einrichten Version 1.3
RECADV Element
XML Einrichten Version 1.3 > RecadvMessage Element : RECADV Element
Namespace (none)

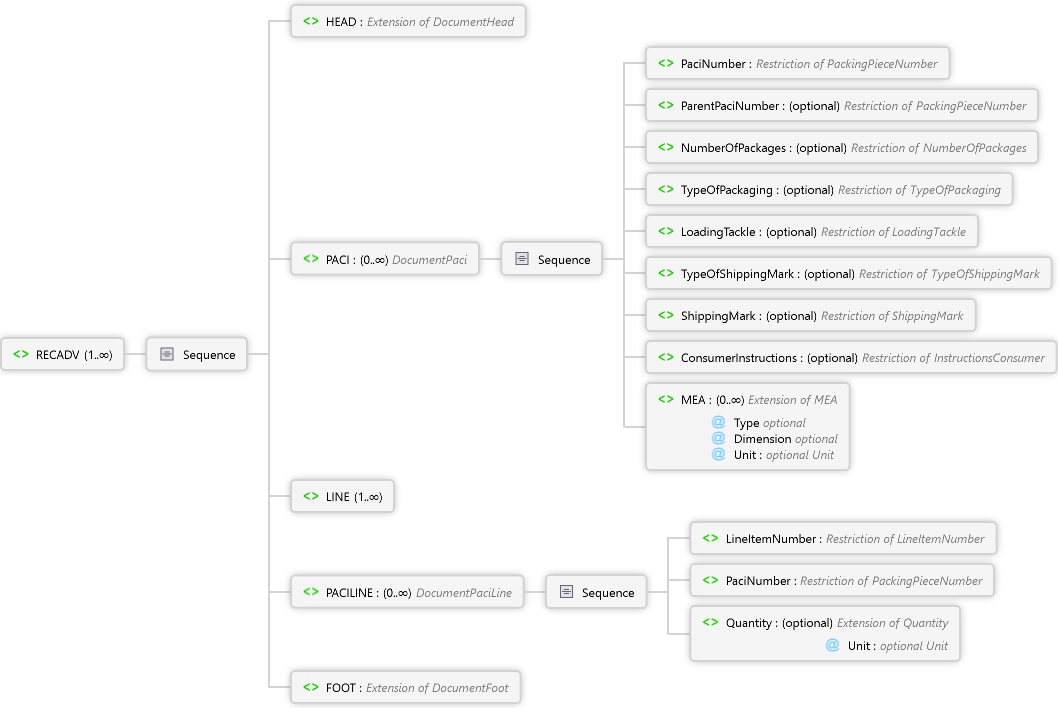

Diagram
FOOT Element Quantity Element PaciNumber Element LineItemNumber Element Sequence PACILINE Element LINE Element MEA Element ConsumerInstructions Element ShippingMark Element TypeOfShippingMark Element LoadingTackle Element TypeOfPackaging Element NumberOfPackages Element ParentPaciNumber Element PaciNumber Element Sequence PACI Element HEAD Element Sequence RECADV Element
Overview
RECADV 1..∞
Sequence
HEAD Extension of DocumentHead Complex Type
Head of the receiving advice(RECADV)
Sequence
VersionNumber MessageVersion Complex Type
Sequence
VersionName Restriction of xs:string
Name of the message format
VersionNo Restriction of xs:string
Message definition version number
WorkflowType optional Restriction of xs:string
Notes on process type based on order message
"" = Default
P = planning order
K = kitchen order
E = Order only with GTIN (EAN) numbers
T = text order without clear article IDs
XCR = variant order from XcalibuR
XCRK= Copy of a variant order from XcalibuR - only transferred to the IWOfurn platform
COMP= Complaint
EUDR= Order only for EUDR handling without transfer to industry or portal
WorkflowDestination optional WorkflowDestination Simple Type
Notes on the process type in relation to the delivery process
L = Stock
CD = Cross docking
D = Dropshipping
WorkflowAdditonalDocs optional
List of additional messages to be generated from this document
R = Invoice to the endconsumer
L = delivery note
A = Address label
#..# = All combinations from above possible
DocumentType DocumentType Simple Type
DocumentFunctionSymbol DocumentFunctionSymbol Simple Type
DocumentNumber DocumentNumber Simple Type
DocumentDate EDIDate Complex Type
FormatCode optional EDIDateFormatCode Simple Type
TechnicalReceiver optional TechnicalReceiver Simple Type
technical, physical recipient of the message
TechnicalSender optional TechnicalReceiver Simple Type
technical, physical sender of the message
AdditionalDate 0..99 EDIDateQualified Complex Type
Qualifier optional EDIDateQualifier Simple Type
FormatCode optional EDIDateFormatCode Simple Type
AdditionalReference 0..99 DocumentReferenceQualified Complex Type
TechnicalReceiverCopy optional TechnicalReceiver Simple Type
Physical receiver for a copy from this message
VATId optional VATId Simple Type
OrderNumberRef OrderNumber Complex Type
RequestedDeliveryDate optional RequestedDeliveryDate Complex Type
FormatCode optional EDIDateFormatCode Simple Type
Commission optional Commission Simple Type
OrderResponseRef optional OrderResponseNumberRef Complex Type
DespatchAdviceRef DespatchAdviceNumberRef Complex Type
TourNumber TourNumber Simple Type
DespatchNumber optional DespatchNumberRef Complex Type
UnloadingDuration optional Duration Complex Type
Unit optional Unit Simple Type
LeadWireSealNumber optional NumberOfTheLeadWireSeal Simple Type
GoodsReceiptNumber optional GoodsReceiptNumber Simple Type
PickUpDate optional PickUpDate Complex Type
FormatCode optional EDIDateFormatCode Simple Type
HTXT 0..∞ HTXT Complex Type
Sequence
HeadText 1..999 Textinformation Complex Type
One line of text information according to the head information
Type required Restriction of xs:string
Freitext
Verwendung in Rechnungen
SUR = Text zur Entgeltminderung
REG = Text zur innergeimeischaftlichen Lieferung
AAB = Zahlungsbedingungen
AAI = Allgemeine Geschäftsbedingungen
AAR = Lieferbedingungen

Verwendung allgemein
TDT = Transportbemerkungen
ZZZ = Beidseitig vereinbart

Verwendung in der Reklamation
AFH = Reklamation
Free text
Use in invoices
SUR = Text about the reduction in wages
REG = text for intra-community delivery
AAB = Payment terms
AAI = General Terms and Conditions
AAR = delivery conditions

General use
TDT = Transport Notes
ZZZ = Mutually agreed

Use in the complaint
AFH = Complaint
NAD 1..∞ NAD Complex Type
Sequence
FlagOfParty FlagOfParty Simple Type
Code for the adresstype
AdressGLN optional
GLN Code of the address
Name1 optional Restriction of xs:string
in case of Companies: Companyname
in case of Endusers: Firstname surname
Name2 optional Restriction of xs:string
in case of Companies: Continuation of the Companyname
in case of Endusers: empty
Name3 optional Restriction of xs:string
in case of Companies: Empty
in case of Endusers: First name
Name4 optional Restriction of xs:string
in case of Companies: Empty
in case of Endusers: Surname
Street1 optional Restriction of xs:string
Street
StreetAddition 0..3 Restriction of xs:string
Additional information to the Street
PostalCode optional Restriction of xs:string
Zip Code
City optional Restriction of xs:string
City
ISOCountryCode optional Restriction of xs:string
ISO Country Code
VATId optional VATId Simple Type
TaxId optional TaxId Simple Type
ContactPerson optional Contact Complex Type
Sequence
ContactSurName optional Restriction of xs:string
Surname of the contact
ContactFirstName optional Restriction of xs:string
First name of the contact
ContactCode optional Restriction of xs:string
Ident of the contact
ContactCommunication 0..9 ContactCommunication Complex Type
Group for the communication data
Sequence
CommunicationCode Restriction of xs:string
CommunicationAdress Restriction of xs:string
Communication address related to the previous defined communication type
ContactType optional Restriction of xs:string
OpeningHours 0..9 OpeningPeriod Complex Type
FormatCode optional EDIDateFormatCode Simple Type
ContractNumber optional Restriction of xs:string
Contract number
ZRNumber optional ZRNumber Simple Type
BusinessCustomerNumber optional BusinessCustomerNumber Simple Type
DeliveryConditions 0..10 DeliveryCondition Simple Type
Accounting 0..5 FII Complex Type
Sequence
AccountNumber optional Restriction of xs:string
Account Number
AccountHolder1 optional Restriction of xs:string
Account holder Line 1
AccountHolder2 optional Restriction of xs:string
Account holder Line 2
InstitutionBranch optional Restriction of xs:string
Branch of the bank
InstitutionName optional Restriction of xs:string
Name of the bank
InstitutionBranchLocation optional Restriction of xs:string
City of the bank branch
Country optional Restriction of xs:string
City of the bank
BICNumber optional Restriction of xs:string
BIC Code
IBANNumber optional Restriction of xs:string
IBAN
FurtherReferences optional Restriction of xs:string
e.g. depot number
PACI 0..∞ DocumentPaci Complex Type
Description of the pachaging pieces within the receiving advice(RECADV)
Sequence
PaciNumber PackingPieceNumber Simple Type
ParentPaciNumber optional PackingPieceNumber Simple Type
NumberOfPackages optional NumberOfPackages Simple Type
TypeOfPackaging optional TypeOfPackaging Simple Type
LoadingTackle optional LoadingTackle Simple Type
TypeOfShippingMark optional TypeOfShippingMark Simple Type
ShippingMark optional ShippingMark Simple Type
ConsumerInstructions optional InstructionsConsumer Simple Type
MEA 0..∞ MEA Complex Type
Type optional Restriction of xs:string
Type if measurement
Code list (for articles and packaging):
AAE = Weight or Volumen
PD = Dimension
Use the following codes for special article measurements:
ABK = Outside dimension
ABL = Inside dimension
Y2E = Maximum dimension
Y3E = Minimum dimensionMinimalmaß z.B. Klappstuhl eingeklappt
Y4E = Lying dimension
Y5E = Sitting dimension
Dimension optional Restriction of xs:string
Gemessene Dimension
Verwenden Sie folgende Codes für Artikel und Packstücke:
DP = Tiefe
HT = Höhe
LN = Länge
WD = Breite
DI = Durchmesser
AAA = Netto Gewicht Ware inkl. Endkundenverpackung
AAB = Brutto Gewicht Ware inkl. Transportverpackung
AAF = Netto Gewicht Ware ohne jede Verpackung
ABJ = Volumen
Mesaured dimension
use this codes for articles and packaging:
DP = Depth
HT = Height
LN = Length
WD = Width
DI = Diameter
AAA = Net weight goods incl. end-consumer packaging
AAB = Gross weight goods incl. packaging for transporz
AAF = Net weight goods without any packaging
ABJ = Volume
Unit optional Unit Simple Type
LINE 1..∞
Description of the articles within the receiving advice(RECADV)
Sequence
LineItemNumber LineItemNumber Simple Type
ParentLineItemNumber optional LineItemNumber Simple Type
SeriesID optional ProductIdentifier Complex Type
Sequence
GTIN optional Restriction of xs:decimal
= EAN Code
Number optional Restriction of xs:string
Internal number defined by the manufacturer
Name optional Restriction of xs:string
Name
CustomerNumber optional Restriction of xs:string
Number at customers site
CustomerName optional Restriction of xs:string
Name at customers site
ProductID optional ProductIdentifier Complex Type
Sequence
GTIN optional Restriction of xs:decimal
= EAN Code
Number optional Restriction of xs:string
Internal number defined by the manufacturer
Name optional Restriction of xs:string
Name
CustomerNumber optional Restriction of xs:string
Number at customers site
CustomerName optional Restriction of xs:string
Name at customers site
OrderLineRef optional DocumentLineReference Complex Type
BlanketOrderLineRef optional DocumentLineReference Complex Type
Commission optional Commission Simple Type
PackagingType optional TypeOfPackaging Simple Type
BatchNumber optional BatchNumber Simple Type
SerialNumber optional SerialNumber Simple Type
AdditionalLineRef 0..∞ DocumentLineReferenceQualified Complex Type
OrderedQuantity optional Quantity Complex Type
Unit optional Unit Simple Type
OrderResponseQuantity optional Quantity Complex Type
Unit optional Unit Simple Type
ReceivingAdviceQuantity Quantity Complex Type
Unit optional Unit Simple Type
QuantityExclusiveOfEvaluation optional Quantity Complex Type
Unit optional Unit Simple Type
QuantityDeviation optional QuantityQualified Complex Type
Qualifier optional QuantityQualifier Simple Type
Unit optional Unit Simple Type
QuantityDeviationType optional TypeOfQuantityDeviation Simple Type
NumberOfPackages optional NumberOfPackages Simple Type
DespatchDate optional DespatchDate Complex Type
FormatCode optional EDIDateFormatCode Simple Type
AdditionalDate 0..∞ EDIDateQualified Complex Type
Qualifier optional EDIDateQualifier Simple Type
FormatCode optional EDIDateFormatCode Simple Type
AdditionalQuantity 0..∞ QuantityQualified Complex Type
Qualifier optional QuantityQualifier Simple Type
Unit optional Unit Simple Type
MEA 0..∞ MEA Complex Type
Type optional Restriction of xs:string
Type if measurement
Code list (for articles and packaging):
AAE = Weight or Volumen
PD = Dimension
Use the following codes for special article measurements:
ABK = Outside dimension
ABL = Inside dimension
Y2E = Maximum dimension
Y3E = Minimum dimensionMinimalmaß z.B. Klappstuhl eingeklappt
Y4E = Lying dimension
Y5E = Sitting dimension
Dimension optional Restriction of xs:string
Gemessene Dimension
Verwenden Sie folgende Codes für Artikel und Packstücke:
DP = Tiefe
HT = Höhe
LN = Länge
WD = Breite
DI = Durchmesser
AAA = Netto Gewicht Ware inkl. Endkundenverpackung
AAB = Brutto Gewicht Ware inkl. Transportverpackung
AAF = Netto Gewicht Ware ohne jede Verpackung
ABJ = Volumen
Mesaured dimension
use this codes for articles and packaging:
DP = Depth
HT = Height
LN = Length
WD = Width
DI = Diameter
AAA = Net weight goods incl. end-consumer packaging
AAB = Gross weight goods incl. packaging for transporz
AAF = Net weight goods without any packaging
ABJ = Volume
Unit optional Unit Simple Type
LTXT optional LTXT Complex Type
Sequence
LineText 1..999 Textinformation Complex Type
One line of text information according to the line information
Type required Restriction of xs:string
Freitext
Verwendung in Rechnungen
SUR = Text zur Entgeltminderung
REG = Text zur innergeimeischaftlichen Lieferung
AAB = Zahlungsbedingungen
AAI = Allgemeine Geschäftsbedingungen
AAR = Lieferbedingungen

Verwendung allgemein
TDT = Transportbemerkungen
ZZZ = Beidseitig vereinbart

Verwendung in der Reklamation
AFH = Reklamation
Free text
Use in invoices
SUR = Text about the reduction in wages
REG = text for intra-community delivery
AAB = Payment terms
AAI = General Terms and Conditions
AAR = delivery conditions

General use
TDT = Transport Notes
ZZZ = Mutually agreed

Use in the complaint
AFH = Complaint
OPT 0..∞ OPT Complex Type
Sequence
FeatureLineNumber Restriction of xs:int
Sequential number of the feature within a line
ParentFeatureLineNumber optional Restriction of xs:decimal
reference to a superior feature
FeatureID ProductIdentifier Complex Type
identification elements for a feature
Sequence
GTIN optional Restriction of xs:decimal
= EAN Code
Number optional Restriction of xs:string
Internal number defined by the manufacturer
Name optional Restriction of xs:string
Name
CustomerNumber optional Restriction of xs:string
Number at customers site
CustomerName optional Restriction of xs:string
Name at customers site
Option Option Complex Type
Description of the option according to the feature
Sequence
OptionID optional ProductIdentifier Complex Type
Sequence
GTIN optional Restriction of xs:decimal
= EAN Code
Number optional Restriction of xs:string
Internal number defined by the manufacturer
Name optional Restriction of xs:string
Name
CustomerNumber optional Restriction of xs:string
Number at customers site
CustomerName optional Restriction of xs:string
Name at customers site
TextValue optional
NumericValue optional UnitValue Complex Type
Unit optional Unit Simple Type
DPP 0..2 DPP Complex Type
Link to the digital product pass or digital zwin
PACILINE 0..∞ DocumentPaciLine Complex Type
Description of the relation bewteen articles and packagign pieces within the receiving advice(RECADV)
Sequence
LineItemNumber LineItemNumber Simple Type
reference to a position defined in LINE
PaciNumber PackingPieceNumber Simple Type
Reference to a position defined in PACi
Quantity optional Quantity Complex Type
Number of units from LINE in PACI
Unit optional Unit Simple Type
FOOT Extension of DocumentFoot Complex Type
Footer of the receiving advice(RECADV)
Sequence
SendingDate optional EDIDate Complex Type
Sending date of this message
FormatCode optional EDIDateFormatCode Simple Type
Source
<xs:element name="RECADV" minOccurs="1" maxOccurs="unbounded" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="HEAD" minOccurs="1" maxOccurs="1">
        <xs:annotation>
          <xs:documentation xml:lang="de">Kopfteil der Wareiengangsmeldung (RECADV) </xs:documentation>
          <xs:documentation xml:lang="en">Head of the receiving advice(RECADV) </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:complexContent>
            <xs:extension base="DocumentHead">
              <xs:sequence>
                <xs:element name="VATId" type="VATId" minOccurs="0" />
                <xs:element name="OrderNumberRef" type="OrderNumber" minOccurs="1" />
                <xs:element name="RequestedDeliveryDate" type="RequestedDeliveryDate" minOccurs="0" />
                <xs:element name="Commission" type="Commission" minOccurs="0" />
                <xs:element name="OrderResponseRef" type="OrderResponseNumberRef" minOccurs="0" />
                <xs:element name="DespatchAdviceRef" type="DespatchAdviceNumberRef" minOccurs="1" />
                <xs:element name="TourNumber" type="TourNumber" minOccurs="1" />
                <xs:element name="DespatchNumber" type="DespatchNumberRef" minOccurs="0" />
                <xs:element name="UnloadingDuration" type="Duration" minOccurs="0" />
                <xs:element name="LeadWireSealNumber" type="NumberOfTheLeadWireSeal" minOccurs="0" />
                <xs:element name="GoodsReceiptNumber" type="GoodsReceiptNumber" minOccurs="0" />
                <xs:element name="PickUpDate" type="PickUpDate" minOccurs="0" />
                <xs:element name="HTXT" type="HTXT" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="NAD" type="NAD" minOccurs="1" maxOccurs="unbounded" />
              </xs:sequence>
            </xs:extension>
          </xs:complexContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="PACI" type="DocumentPaci" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation xml:lang="de">Beschreibung der Packstücke in der Wareiengangsmeldung (RECADV)  </xs:documentation>
          <xs:documentation xml:lang="en">Description of the pachaging pieces within the receiving advice(RECADV) </xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="LINE" minOccurs="1" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation xml:lang="de">Beschreibung der Artikel in der Wareiengangsmeldung (RECADV) </xs:documentation>
          <xs:documentation xml:lang="en">Description of the articles within the receiving advice(RECADV) </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="LineItemNumber" type="LineItemNumber" minOccurs="1" />
            <xs:element name="ParentLineItemNumber" type="LineItemNumber" minOccurs="0" />
            <xs:element name="SeriesID" type="ProductIdentifier" minOccurs="0" />
            <xs:element name="ProductID" type="ProductIdentifier" minOccurs="0" />
            <xs:element name="OrderLineRef" type="DocumentLineReference" minOccurs="0" />
            <xs:element name="BlanketOrderLineRef" type="DocumentLineReference" minOccurs="0" />
            <xs:element name="Commission" type="Commission" minOccurs="0" />
            <xs:element name="PackagingType" type="TypeOfPackaging" minOccurs="0" />
            <xs:element name="BatchNumber" type="BatchNumber" minOccurs="0" />
            <xs:element name="SerialNumber" type="SerialNumber" minOccurs="0" />
            <xs:element name="AdditionalLineRef" type="DocumentLineReferenceQualified" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="OrderedQuantity" type="Quantity" minOccurs="0" />
            <xs:element name="OrderResponseQuantity" type="Quantity" minOccurs="0" />
            <xs:element name="ReceivingAdviceQuantity" type="Quantity" minOccurs="1" />
            <xs:element name="QuantityExclusiveOfEvaluation" type="Quantity" minOccurs="0" />
            <xs:element name="QuantityDeviation" type="QuantityQualified" minOccurs="0" />
            <xs:element name="QuantityDeviationType" type="TypeOfQuantityDeviation" minOccurs="0" />
            <xs:element name="NumberOfPackages" type="NumberOfPackages" minOccurs="0" />
            <xs:element name="DespatchDate" type="DespatchDate" minOccurs="0" />
            <xs:element name="AdditionalDate" type="EDIDateQualified" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="AdditionalQuantity" type="QuantityQualified" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="MEA" type="MEA" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="LTXT" type="LTXT" minOccurs="0" maxOccurs="1" />
            <xs:element name="OPT" type="OPT" minOccurs="0" maxOccurs="unbounded" />
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="PACILINE" type="DocumentPaciLine" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation xml:lang="de">Beschreibung der Zugeörigkeit von Artikeln zur Packstücken in der Wareiengangsmeldung (RECADV) </xs:documentation>
          <xs:documentation xml:lang="en">Description of the relation bewteen articles and packagign pieces within the receiving advice(RECADV)</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="FOOT" minOccurs="1" maxOccurs="1">
        <xs:annotation>
          <xs:documentation xml:lang="de">Abschluss der Wareiengangsmeldung (RECADV)</xs:documentation>
          <xs:documentation xml:lang="en">Footer of the receiving advice(RECADV) </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:complexContent>
            <xs:extension base="DocumentFoot" />
          </xs:complexContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
See Also
RecadvMessage Element | XML Einrichten Version 1.3





© 2025 Integrated Worlds GmbH. All Rights Reserved.

Senden Sie uns hier Ihre Kommentare und Verbesserungsvorschläge
