XML Einrichten Version 1.3
REMADV Element
XML Einrichten Version 1.3 > RemadvMessage Element : REMADV Element
Namespace (none)

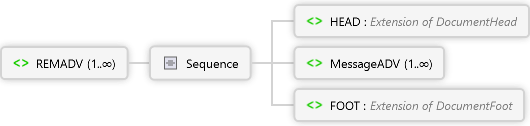

Diagram
FOOT Element MessageADV Element HEAD Element Sequence REMADV Element
Overview
REMADV 1..∞
Sequence
HEAD Extension of DocumentHead Complex Type
Head of the remittance advise (REMADV)
Sequence
VersionNumber MessageVersion Complex Type
Sequence
VersionName Restriction of xs:string
Name of the message format
VersionNo Restriction of xs:string
Message definition version number
WorkflowType optional Restriction of xs:string
Notes on process type based on order message
"" = Default
P = planning order
K = kitchen order
E = Order only with GTIN (EAN) numbers
T = text order without clear article IDs
XCR = variant order from XcalibuR
XCRK= Copy of a variant order from XcalibuR - only transferred to the IWOfurn platform
COMP= Complaint
EUDR= Order only for EUDR handling without transfer to industry or portal
WorkflowDestination optional WorkflowDestination Simple Type
Notes on the process type in relation to the delivery process
L = Stock
CD = Cross docking
D = Dropshipping
WorkflowAdditonalDocs optional
List of additional messages to be generated from this document
R = Invoice to the endconsumer
L = delivery note
A = Address label
#..# = All combinations from above possible
DocumentType DocumentType Simple Type
DocumentFunctionSymbol DocumentFunctionSymbol Simple Type
DocumentNumber DocumentNumber Simple Type
DocumentDate EDIDate Complex Type
FormatCode optional EDIDateFormatCode Simple Type
TechnicalReceiver optional TechnicalReceiver Simple Type
technical, physical recipient of the message
TechnicalSender optional TechnicalReceiver Simple Type
technical, physical sender of the message
AdditionalDate 0..99 EDIDateQualified Complex Type
Qualifier optional EDIDateQualifier Simple Type
FormatCode optional EDIDateFormatCode Simple Type
AdditionalReference 0..99 DocumentReferenceQualified Complex Type
TechnicalReceiverCopy optional TechnicalReceiver Simple Type
Physical receiver for a copy from this message
PaymentType optional PaymentType Simple Type
PaymentWay optional PaymentWay Simple Type
PaymentDate optional PaymentDate Complex Type
FormatCode optional EDIDateFormatCode Simple Type
AccountingPeriodStartDate optional AccountingPeriodDate Complex Type
FormatCode optional EDIDateFormatCode Simple Type
AccountingPeriodEndDate optional AccountingPeriodDate Complex Type
FormatCode optional EDIDateFormatCode Simple Type
FinancialInformation optional FII Complex Type
Sequence
AccountNumber optional Restriction of xs:string
Account Number
AccountHolder1 optional Restriction of xs:string
Account holder Line 1
AccountHolder2 optional Restriction of xs:string
Account holder Line 2
InstitutionBranch optional Restriction of xs:string
Branch of the bank
InstitutionName optional Restriction of xs:string
Name of the bank
InstitutionBranchLocation optional Restriction of xs:string
City of the bank branch
Country optional Restriction of xs:string
City of the bank
BICNumber optional Restriction of xs:string
BIC Code
IBANNumber optional Restriction of xs:string
IBAN
Currency optional Currency Simple Type
ExchangeRate optional ExchangeRate Simple Type
NAD 1..∞ NAD Complex Type
Sequence
FlagOfParty FlagOfParty Simple Type
Code for the adresstype
AdressGLN optional
GLN Code of the address
Name1 optional Restriction of xs:string
in case of Companies: Companyname
in case of Endusers: Firstname surname
Name2 optional Restriction of xs:string
in case of Companies: Continuation of the Companyname
in case of Endusers: empty
Name3 optional Restriction of xs:string
in case of Companies: Empty
in case of Endusers: First name
Name4 optional Restriction of xs:string
in case of Companies: Empty
in case of Endusers: Surname
Street1 optional Restriction of xs:string
Street
StreetAddition 0..3 Restriction of xs:string
Additional information to the Street
PostalCode optional Restriction of xs:string
Zip Code
City optional Restriction of xs:string
City
ISOCountryCode optional Restriction of xs:string
ISO Country Code
VATId optional VATId Simple Type
TaxId optional TaxId Simple Type
ContactPerson optional Contact Complex Type
Sequence
ContactSurName optional Restriction of xs:string
Surname of the contact
ContactFirstName optional Restriction of xs:string
First name of the contact
ContactCode optional Restriction of xs:string
Ident of the contact
ContactCommunication 0..9 ContactCommunication Complex Type
Group for the communication data
Sequence
CommunicationCode Restriction of xs:string
CommunicationAdress Restriction of xs:string
Communication address related to the previous defined communication type
ContactType optional Restriction of xs:string
OpeningHours 0..9 OpeningPeriod Complex Type
FormatCode optional EDIDateFormatCode Simple Type
ContractNumber optional Restriction of xs:string
Contract number
ZRNumber optional ZRNumber Simple Type
BusinessCustomerNumber optional BusinessCustomerNumber Simple Type
DeliveryConditions 0..10 DeliveryCondition Simple Type
Accounting 0..5 FII Complex Type
Sequence
AccountNumber optional Restriction of xs:string
Account Number
AccountHolder1 optional Restriction of xs:string
Account holder Line 1
AccountHolder2 optional Restriction of xs:string
Account holder Line 2
InstitutionBranch optional Restriction of xs:string
Branch of the bank
InstitutionName optional Restriction of xs:string
Name of the bank
InstitutionBranchLocation optional Restriction of xs:string
City of the bank branch
Country optional Restriction of xs:string
City of the bank
BICNumber optional Restriction of xs:string
BIC Code
IBANNumber optional Restriction of xs:string
IBAN
FurtherReferences optional Restriction of xs:string
e.g. depot number
MessageADV 1..∞
Sequence
DocumentType DocumentType Simple Type
PreviousDocumentNumber DocumentNumber Simple Type
GrossLineAmount optional InvoiceAmount Complex Type
Sequence
NetLineAmount optional NetLineAmount Complex Type
Sequence
AdditionalAmount 0..∞ LineAmountQualified Complex Type
AdditionalDate 0..99 EDIDateQualified Complex Type
Qualifier optional EDIDateQualifier Simple Type
FormatCode optional EDIDateFormatCode Simple Type
AdditionalReference 0..∞ DocumentLineReferenceQualified Complex Type
MAJT 1..∞ Adjustment Complex Type
Sequence
CorrectionReason optional CorrectionReason Simple Type
AdditionalReference 0..∞ DocumentLineReferenceQualified Complex Type
AdditionalAmount 0..∞ LineAmountQualified Complex Type
CorrectionVat optional Vat Complex Type
Sequence
VatValue optional CurrencyValue Complex Type
Tax Amount
Sequence
VatPercentage VatPercentage Simple Type
Tax rate
VatBase optional CurrencyValue Complex Type
Vat base amount for a dedicated tax rate
Calculation: Sum of all Net Line Amounts - DiscountsConditionsTotal
Sequence
NAD 1..∞ NAD Complex Type
Sequence
FlagOfParty FlagOfParty Simple Type
Code for the adresstype
AdressGLN optional
GLN Code of the address
Name1 optional Restriction of xs:string
in case of Companies: Companyname
in case of Endusers: Firstname surname
Name2 optional Restriction of xs:string
in case of Companies: Continuation of the Companyname
in case of Endusers: empty
Name3 optional Restriction of xs:string
in case of Companies: Empty
in case of Endusers: First name
Name4 optional Restriction of xs:string
in case of Companies: Empty
in case of Endusers: Surname
Street1 optional Restriction of xs:string
Street
StreetAddition 0..3 Restriction of xs:string
Additional information to the Street
PostalCode optional Restriction of xs:string
Zip Code
City optional Restriction of xs:string
City
ISOCountryCode optional Restriction of xs:string
ISO Country Code
VATId optional VATId Simple Type
TaxId optional TaxId Simple Type
ContactPerson optional Contact Complex Type
Sequence
ContactSurName optional Restriction of xs:string
Surname of the contact
ContactFirstName optional Restriction of xs:string
First name of the contact
ContactCode optional Restriction of xs:string
Ident of the contact
ContactCommunication 0..9 ContactCommunication Complex Type
Group for the communication data
Sequence
CommunicationCode Restriction of xs:string
CommunicationAdress Restriction of xs:string
Communication address related to the previous defined communication type
ContactType optional Restriction of xs:string
OpeningHours 0..9 OpeningPeriod Complex Type
FormatCode optional EDIDateFormatCode Simple Type
ContractNumber optional Restriction of xs:string
Contract number
ZRNumber optional ZRNumber Simple Type
BusinessCustomerNumber optional BusinessCustomerNumber Simple Type
DeliveryConditions 0..10 DeliveryCondition Simple Type
Accounting 0..5 FII Complex Type
Sequence
AccountNumber optional Restriction of xs:string
Account Number
AccountHolder1 optional Restriction of xs:string
Account holder Line 1
AccountHolder2 optional Restriction of xs:string
Account holder Line 2
InstitutionBranch optional Restriction of xs:string
Branch of the bank
InstitutionName optional Restriction of xs:string
Name of the bank
InstitutionBranchLocation optional Restriction of xs:string
City of the bank branch
Country optional Restriction of xs:string
City of the bank
BICNumber optional Restriction of xs:string
BIC Code
IBANNumber optional Restriction of xs:string
IBAN
FurtherReferences optional Restriction of xs:string
e.g. depot number
ProductADV
Sequence
IndicatorForDocumentLine optional IndicatorForDocumentLine Simple Type
LineItemNumber optional LineItemNumber Simple Type
ProductID optional ProductIdentifier Complex Type
Sequence
GTIN optional Restriction of xs:decimal
= EAN Code
Number optional Restriction of xs:string
Internal number defined by the manufacturer
Name optional Restriction of xs:string
Name
CustomerNumber optional Restriction of xs:string
Number at customers site
CustomerName optional Restriction of xs:string
Name at customers site
SeriesID optional ProductIdentifier Complex Type
Sequence
GTIN optional Restriction of xs:decimal
= EAN Code
Number optional Restriction of xs:string
Internal number defined by the manufacturer
Name optional Restriction of xs:string
Name
CustomerNumber optional Restriction of xs:string
Number at customers site
CustomerName optional Restriction of xs:string
Name at customers site
AdditionalAmount 0..∞ LineAmountQualified Complex Type
AdditionalDate 0..99 EDIDateQualified Complex Type
Qualifier optional EDIDateQualifier Simple Type
FormatCode optional EDIDateFormatCode Simple Type
LAJT 1..∞ Adjustment Complex Type
Sequence
CorrectionReason optional CorrectionReason Simple Type
AdditionalReference 0..∞ DocumentLineReferenceQualified Complex Type
AdditionalAmount 0..∞ LineAmountQualified Complex Type
CorrectionVat optional Vat Complex Type
Sequence
VatValue optional CurrencyValue Complex Type
Tax Amount
Sequence
VatPercentage VatPercentage Simple Type
Tax rate
VatBase optional CurrencyValue Complex Type
Vat base amount for a dedicated tax rate
Calculation: Sum of all Net Line Amounts - DiscountsConditionsTotal
Sequence
FOOT Extension of DocumentFoot Complex Type
Footer of the remittance advise (REMADV)
Sequence
SendingDate optional EDIDate Complex Type
Sending date of this message
FormatCode optional EDIDateFormatCode Simple Type
AdditionalAmounts 0..∞ TotalAmountQualified Complex Type
VatTotal 0..3 VatTotal Complex Type
Sequence
VatValue optional CurrencyValue Complex Type
Tax Amount
Sequence
VatPercentage VatPercentage Simple Type
Tax rate
VatBase optional CurrencyValue Complex Type
Vat base amount for a dedicated tax rate
Calculation: Sum of all Net Line Amounts - DiscountsConditionsTotal
Sequence
NetItemAmount NetItemAmount Complex Type
Sequence
DiscountsConditionsTotal DiscountsConditionsTotal Complex Type
Sequence
Source
<xs:element name="REMADV" minOccurs="1" maxOccurs="unbounded" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="HEAD" minOccurs="1" maxOccurs="1">
        <xs:annotation>
          <xs:documentation xml:lang="de">Kopfteil der Zahlungsavise (REMADV)  </xs:documentation>
          <xs:documentation xml:lang="en">Head of the remittance advise (REMADV) </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:complexContent>
            <xs:extension base="DocumentHead">
              <xs:sequence>
                <xs:element name="PaymentType" type="PaymentType" minOccurs="0" />
                <xs:element name="PaymentWay" type="PaymentWay" minOccurs="0" />
                <xs:element name="PaymentDate" type="PaymentDate" minOccurs="0" />
                <xs:element name="AccountingPeriodStartDate" type="AccountingPeriodDate" minOccurs="0" />
                <xs:element name="AccountingPeriodEndDate" type="AccountingPeriodDate" minOccurs="0" />
                <xs:element name="FinancialInformation" type="FII" minOccurs="0" />
                <xs:element name="Currency" type="Currency" minOccurs="0" />
                <xs:element name="ExchangeRate" type="ExchangeRate" minOccurs="0" />
                <xs:element name="NAD" type="NAD" minOccurs="1" maxOccurs="unbounded" />
              </xs:sequence>
            </xs:extension>
          </xs:complexContent>
        </xs:complexType>
      </xs:element>
      <xs:element name="MessageADV" minOccurs="1" maxOccurs="unbounded">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="DocumentType" type="DocumentType" />
            <xs:element name="PreviousDocumentNumber" type="DocumentNumber" />
            <xs:element name="GrossLineAmount" type="InvoiceAmount" minOccurs="0" />
            <xs:element name="NetLineAmount" type="NetLineAmount" minOccurs="0" />
            <xs:element name="AdditionalAmount" type="LineAmountQualified" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="AdditionalDate" type="EDIDateQualified" minOccurs="0" maxOccurs="99" />
            <xs:element name="AdditionalReference" type="DocumentLineReferenceQualified" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="MAJT" type="Adjustment" minOccurs="1" maxOccurs="unbounded" />
            <xs:element name="NAD" type="NAD" minOccurs="1" maxOccurs="unbounded" />
            <xs:element name="ProductADV">
              <xs:complexType>
                <xs:sequence>
                  <xs:element name="IndicatorForDocumentLine" type="IndicatorForDocumentLine" minOccurs="0" />
                  <xs:element name="LineItemNumber" type="LineItemNumber" minOccurs="0" />
                  <xs:element name="ProductID" type="ProductIdentifier" minOccurs="0" />
                  <xs:element name="SeriesID" type="ProductIdentifier" minOccurs="0" />
                  <xs:element name="AdditionalAmount" type="LineAmountQualified" minOccurs="0" maxOccurs="unbounded" />
                  <xs:element name="AdditionalDate" type="EDIDateQualified" minOccurs="0" maxOccurs="99" />
                  <xs:element name="LAJT" type="Adjustment" minOccurs="1" maxOccurs="unbounded" />
                </xs:sequence>
              </xs:complexType>
            </xs:element>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="FOOT" minOccurs="1" maxOccurs="1">
        <xs:annotation>
          <xs:documentation xml:lang="de">Abschluss der Zahlungsavise (REMADV)</xs:documentation>
          <xs:documentation xml:lang="en">Footer of the remittance advise (REMADV)  </xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:complexContent>
            <xs:extension base="DocumentFoot">
              <xs:sequence>
                <xs:element name="AdditionalAmounts" type="TotalAmountQualified" minOccurs="0" maxOccurs="unbounded" />
                <xs:element name="VatTotal" type="VatTotal" minOccurs="0" maxOccurs="3" />
              </xs:sequence>
            </xs:extension>
          </xs:complexContent>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
See Also
RemadvMessage Element | XML Einrichten Version 1.3





© 2025 Integrated Worlds GmbH. All Rights Reserved.

Senden Sie uns hier Ihre Kommentare und Verbesserungsvorschläge
